BT Optio L-series

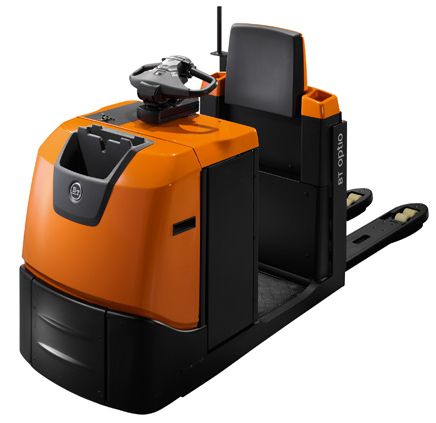

Fast low-level order picker for intense first and second level order picking

Fast low-level order picker for intense first and second level order picking

Suiting both first and second level order picking, the BT Optio models have a maximum load capacity of 2.5 tonnes and offer picking heights up to 2.6 metres. All L-series order pickers offer fast travelling speeds and an easy on/off function, allowing for shorter operating times and improved truck manageability. Unique features such as automatic speed reduction and E-man steering enhance forklift safety and driveability, maximising operator performance. Our BT Optio L-series includes models with elevating platform and lifting forks for optimum safety and more ergonomic picking.


• Load capacity up to 2.5 tonnes at 1200 mm load centre
• Order picking heights up to 2.6 m
• Truck fork lengths up to 3375 mm
• Elevating driver platform and controls
• Elevating forks
• BT Powerdrive


Model Maximum lifting weight Max. lifting height (m) Max. picking height (m) Max. speed (km/h)
OSE120 1200 kg 0.8 2.6 12
OSE120P 1200 kg 0.8 2.6 12
OSE200X 2000 kg 0.8 2.6 12
OSE180XP 1800 kg 0.8 2.6 12
OSE250 2500 kg 0.24 2.6 12
OSE250P 2500 kg 0.24 2.6 12

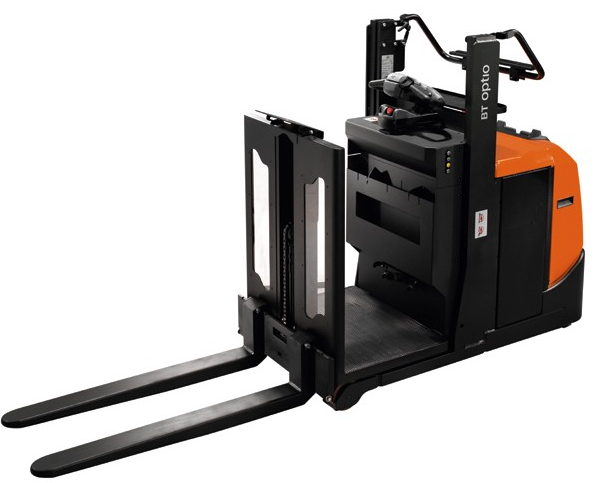

Order picker with elevating load carrier for efficient first and second level picking

Order picker with elevating load carrier for efficient first and second level picking

Suitable for first and second level picking, our OSE100 and OSE100W models in the BT Optio L-series allow the load carrier to move together with the platform, providing increased efficiency for higher picking. The OSE100W offers open access to the load carrier, making it easier for operators to handle heavy materials, whilst the OSE100 includes waist-height forks for improved ergonomics during the loading and unloading of pallets. Both models are equipped with unique safety features, including automatic braking and speed reduction, and E-man steering control.


• Load capacity up to 1.0 tonne at 600 mm load centre
• Order picking heights up to 2.8 m
• Truck fork lengths up to 1150 mm
• Elevating driver platform
• Elevating load carrier
• BT Powerdrive


Model Maximum lifting weight Max. lifting height (m) Max. picking height (m) Max. speed (km/h)
OSE100 1000 kg 1.88 2.8 12
OSE100W 1000 kg 1.10 2.8 12

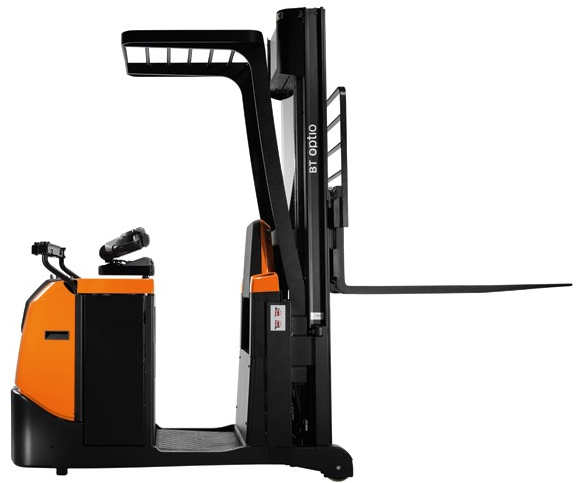

Low-level order picker for first level order picking and stacking

Low-level order picker for first level order picking and stacking

Ideal for first level order picking and stacking, the unique BT Optio L-series model OSE120CB offers increased flexibility and a maximum load capacity of 1.2 tonnes. Capable of handling closed pallets, the OSE120CB is equipped with L-series automated safety features and energy efficient AC power. E-man steering control with touch-sensitive activation allows for easy and efficient operation, with stacking heights up to 4.15 metres.


• Load capacity up to 1.2 tonnes at 500 mm load centre
• Lift heights up to 4.15 m
• Truck fork lengths up to 1200 mm
• E-man steering
• BT Powerdrive


Model Maximum lifting weight Max. lifting height (m) Max. picking height (m) Max. speed (km/h)
OSE120CB 1200 kg 4.15 1.75 12
