BT Optio H-series

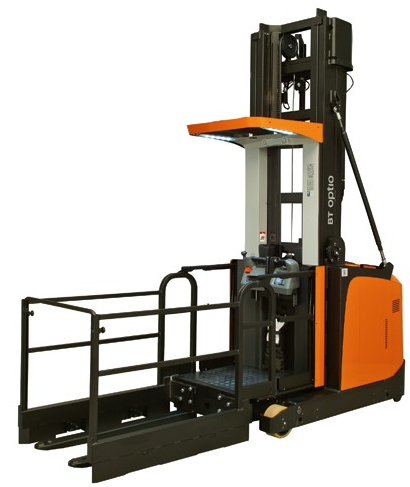

Compact high-level order picker for narrow aisle material handling operations

Compact high-level order picker for narrow aisle material handling operations

The two compact order picking models in the BT Optio H-series range offers simultaneous drive and lift action for smoother and more efficient order picking. With a load capacity of up to 1.2 tonnes and picking heights up to 12.1 metres, our H-series of order pickers sets new standards in productivity and performance. The BT Optipace system monitors truck load and lift height, optimising speed accordingly, whilst fingertip control allows for maximum precision. With an adjustable console and backrest, the H-series order pickers offer the option of driving in both directions.


• Load capacity up to 1.2 tonnes at 600 mm load centre
• Order picking heights up to 12.1 m
• Maximum travel speed of 12 km per hour
• Spacious cab with adjustable controls
• High performance mast
• BT Optipace


Model Maximum lifting weight Max. lifting height (m) Max. picking height (m) Max. speed (km/h)
OME100H 1000 kg 11.1 12.1 12
OME120HW 1200 kg 10.3 12.1 12
